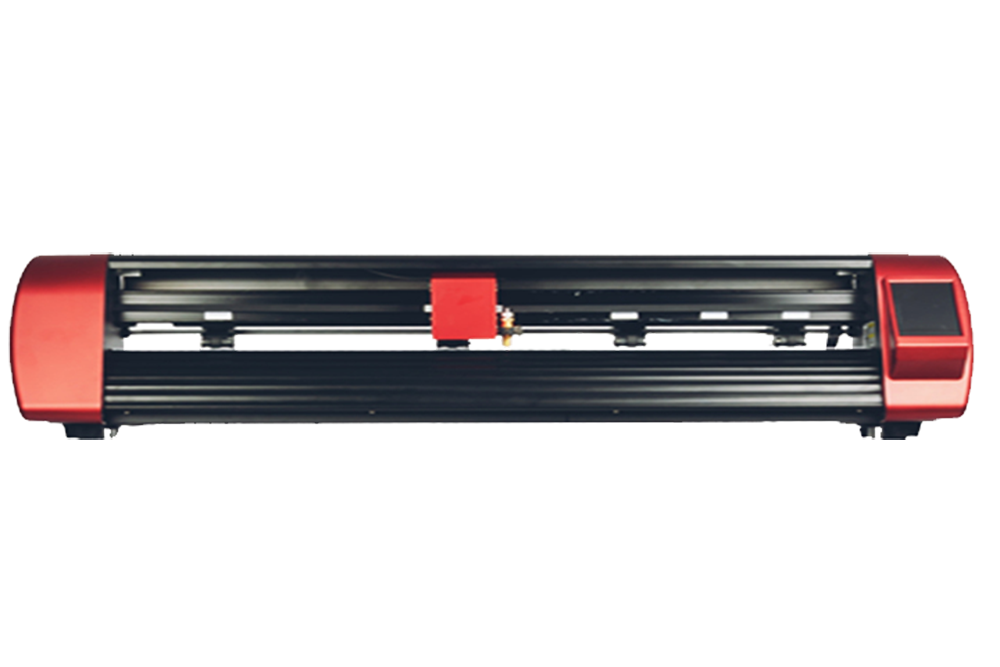

SKYCUT V Series Cutting Plotter
For high accuracy this product, V Series comes with an auto contour cutting camera which also provides you the facility of preview from which you can see or make changes before cutting.
Features
1. Simple and easy handling with easy procedure.
2. High sensibly sensor which takes no time to catch the command.
3. 2000G force cutting power for smooth and easy cutting.
4. 2 unit more power than V48 and other modern features.
5. Large touch screen for easy commanding with sound function.
Specifications
| Product | Skycut V24 | Skycut V48 | Skycut V60 |
|---|---|---|---|
| Max Media Width | 720mm | 1350mm | 1650mm |
| Max Cutting Width | 610mm | 1240mm | 1540mm |
| Max Contour Cutting Width | 570mm | 1200mm | 1500mm |
| Packing Size | 1000*360*388mm | 1620*360*388mm | 1920*360*388mm |
| Packing Gross Weight | 18kg | 39kg | 50kg |
| Max Force | 2000g | 2000g | 2000g |
| Number of Heads | 1 | 1 | 1 |
| Floor Stand | option | Yes | Yes |
| Auto Contour Cut | Camera | Camera | Camera |
| CorelDRAW Directly | Yes | Yes | Yes |
| Power Supply, V/Hz | 220/50 | 220/50 | 220/50 |
| Laser Engrave Option | No | No | No |
| Scratch Engrave | Yes | Yes | Yes |
| Motor | Stepper | Stepper | Stepper |
| Processor Memory | 128MB | 128MB | 128MB |
| Cutting Precision | +/- 0.01mm | +/- 0.01mm | +/- 0.01mm |
| Repeat Precision | 0.082 mm | 0.082 mm | 0.082 mm |
| Max Moving Speed | 700mm/s | 700mm/s | 700mm/s | Max Cutting Speed | 600mm/s | 600mm/s | 600mm/s | Connector Interface | USB flash/ WIFI(option)/ USB cable | USB flash/ WIFI(option)/ USB cable | USB flash/ WIFI(option)/ USB cable | Power | <100W | <100W | <100W | Working Environment | +5°C - +35°C | +5°C - +35°C | +5°C - +35°C |
