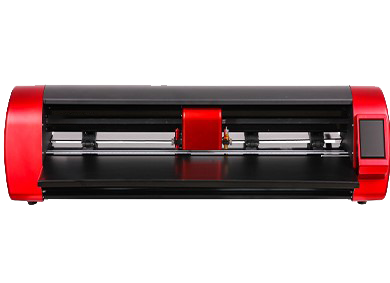

SKYCUT D Series Dual Head Cutting Plotter
Skycut D Series is a double head cutting plotter which has repeat to repeat function which does not need commands again and again for same cutting command.
Features
1. 2000G massive cutting force for cutting hard materials like HTC, EVC etc.
2. Repeat-after-repeat function for ongoing commands without giving again.
3. Classic colour match of glossy red and black colour.
4. Adjustable pinch feed for adjusting and providing grip to material.
5. Multi-interface which cover USB, hard drive, WIFI etc.
Specifications
| Product | Skycut D24 | Skycut D48 |
|---|---|---|
| Max Media Width | 720mm | 1350mm |
| Max Cutting Width | 560mm | 1190mm |
| Max Contour Cutting Width | 450mm | 1080mm |
| Packing Size | 1000*360*388mm | 1620*360*388mm |
| Packing Gross Weight | 18.5kg | 39.5kg |
| Max Force | 2000g | 2000g |
| Number of Heads | 2 | 2 |
| Floor Stand | option | Yes |
| Auto Contour Cut | Camera | Camera |
| CorelDRAW Directly | Yes | Yes |
| Power Supply, V/Hz | 220/50 | 220/50 |
| Laser Engrave Option | No | No |
| Scratch Engrave | Yes | Yes |
| Motor | Stepper | Stepper |
| Processor Memory | 128MB | 128MB |
| Cutting Precision | +/- 0.01mm | +/- 0.01mm |
| Repeat Precision | 0.082 mm | 0.082 mm |
| Max Moving Speed | 700mm/s | 700mm/s | Max Cutting Speed | 600mm/s | 600mm/s | Connector Interface | USB flash/ WIFI(option)/ USB cable | USB flash/ WIFI(option)/ USB cable | Power | <100W | <100W | Working Environment | +5°C - +35°C | +5°C - +35°C | Db Values | 75 | 75 |
